Appreciation of Timing Belts
What is the purpose of Belting Edge Sealing?
Belt edge sealing prevents oil, grease, water, debris, and bacteria from penetrating the belt, thereby extending its service life; by reforming the fused edge, it not only securely seals the fabric layers but also allows for repairs.
It is commonly used for electronic tobacco, food, detection, conveyor belt edge sealing, to eliminate the exposed edge fiber of conveyor belt, which can prevent the edge of conveyor belt from chipping, prevent grease, moisture or other pollutants from entering the conveyor belt from the side, and protect the edge tension balance of textile fiber.
Features
The belt can be sealed without extra sealing materials.
Sealing can be carried out without preparing the belt edge
Even thin single-ply belts can be sealed
The processed belt if soft and not stiff
The operation is particulatly simple and easy to learn

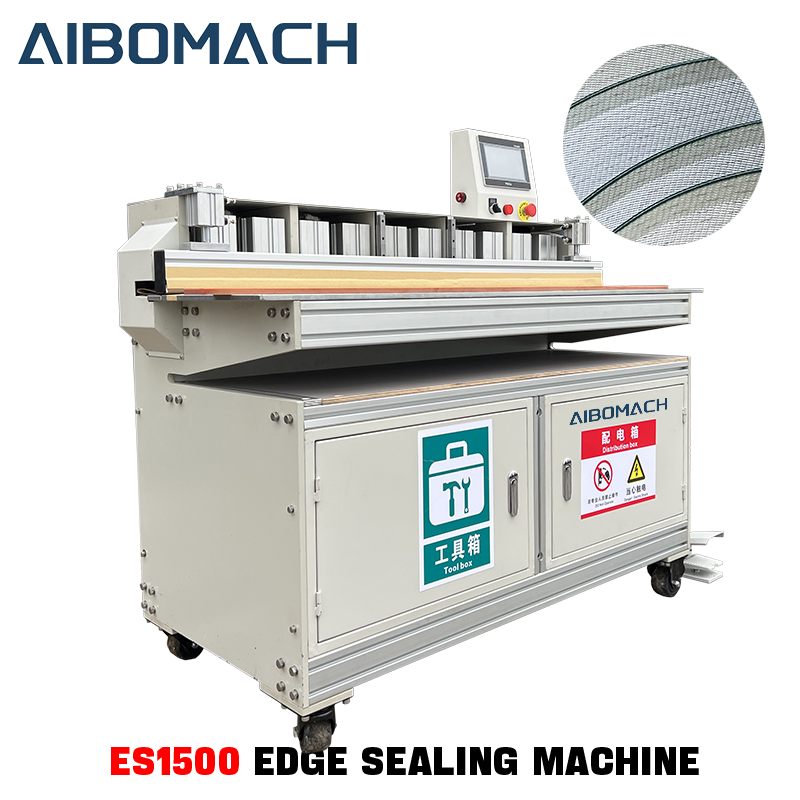

Machine Description
| Model | ES1000 | ES1500 |
| Effective Sealing Length | 1000mm each time | 1500mm each time |
| Power | 1.8KW | 2KW |
| Voltage | 1Ph 220V | |
| Heating Method | Heating Element | |
| Belt Thickness | 0.8mm~5mm | |
| Minimum Circumference | 3200mm | 3900mm |
| Machine Size | 1200*850*1150mm | 1700*850*1150mm |
| Machine Weight | 250KG | 330KG |
