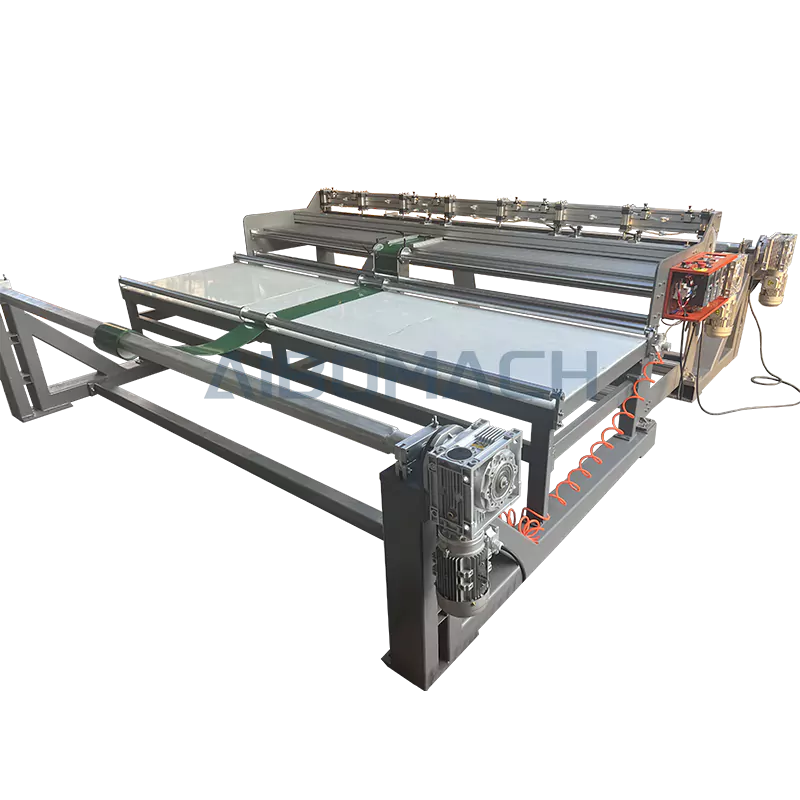

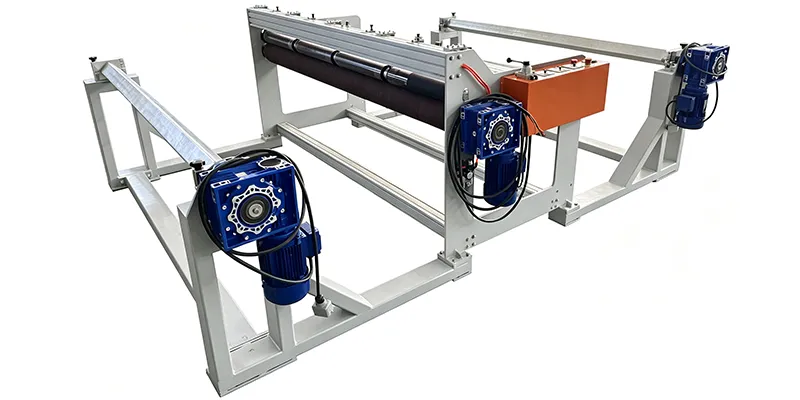

Belt Cutting Machine With Winder And Rewinder

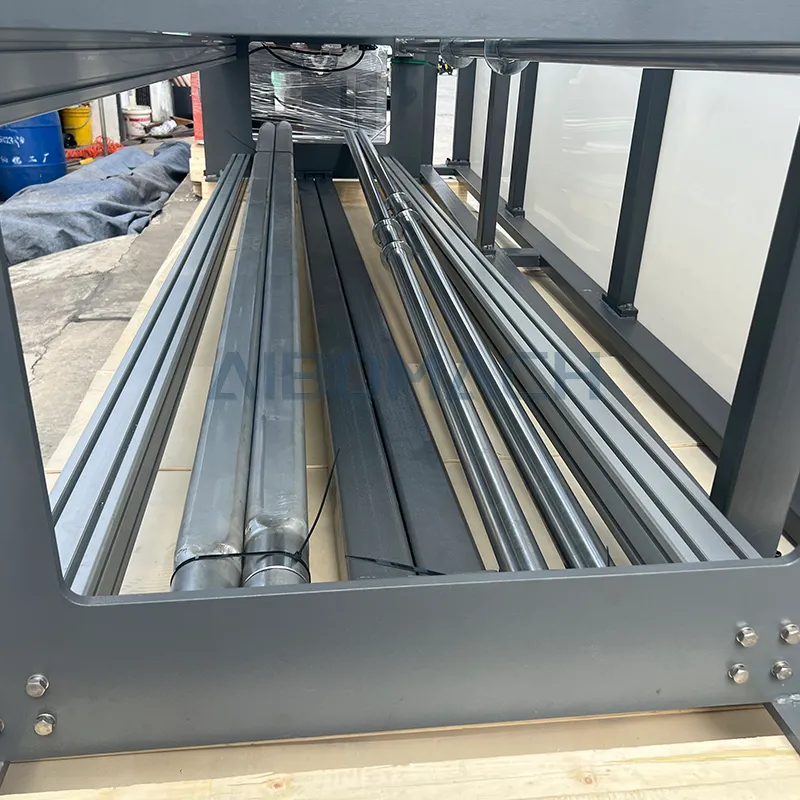

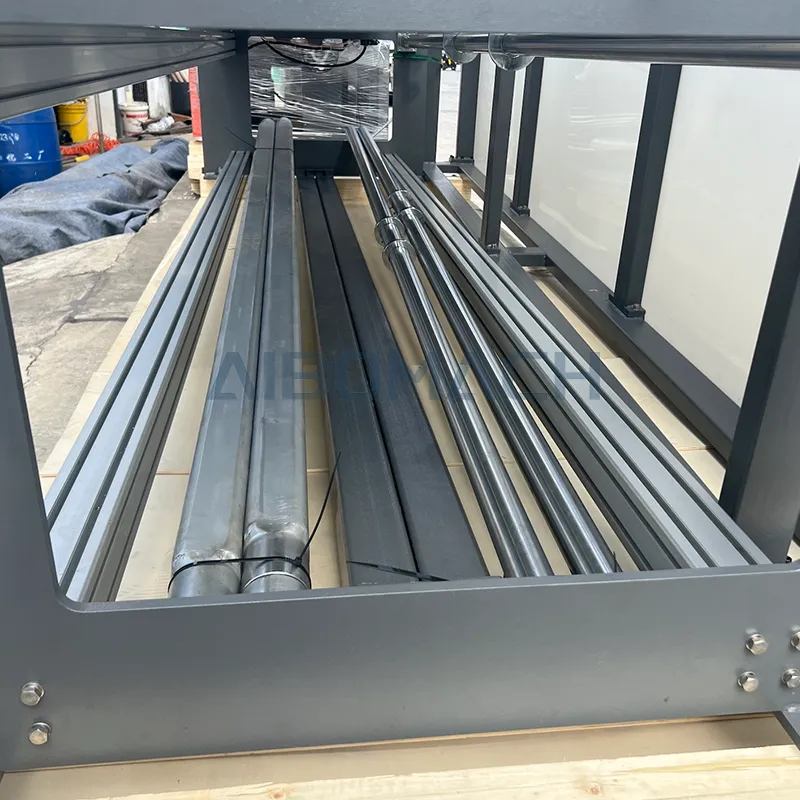

When you got the machine , you need to assembly the cutting machine with winder and rewinder. we will pack them all together in one box, |
 |

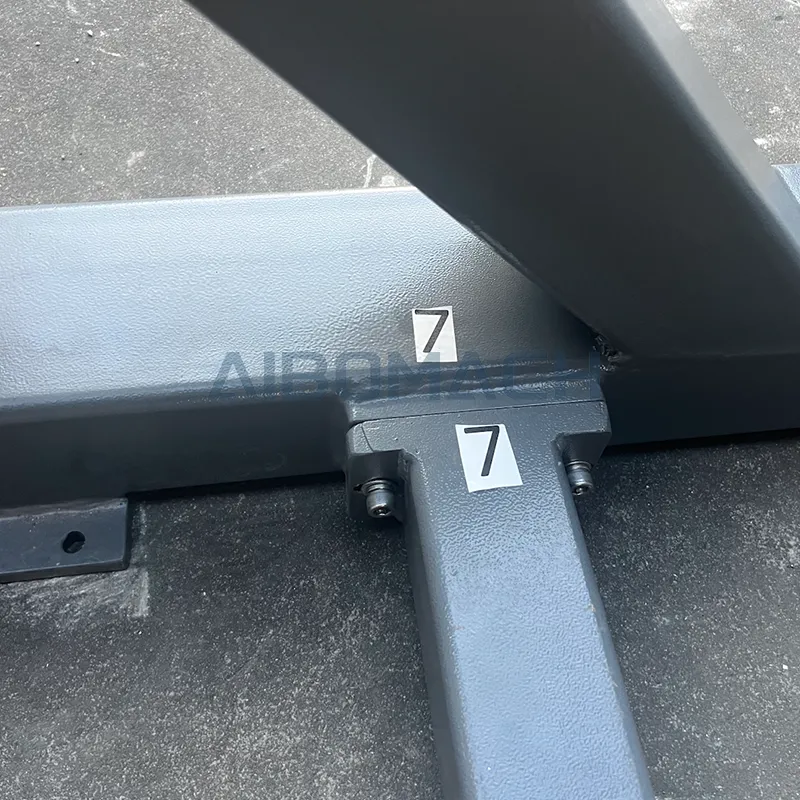

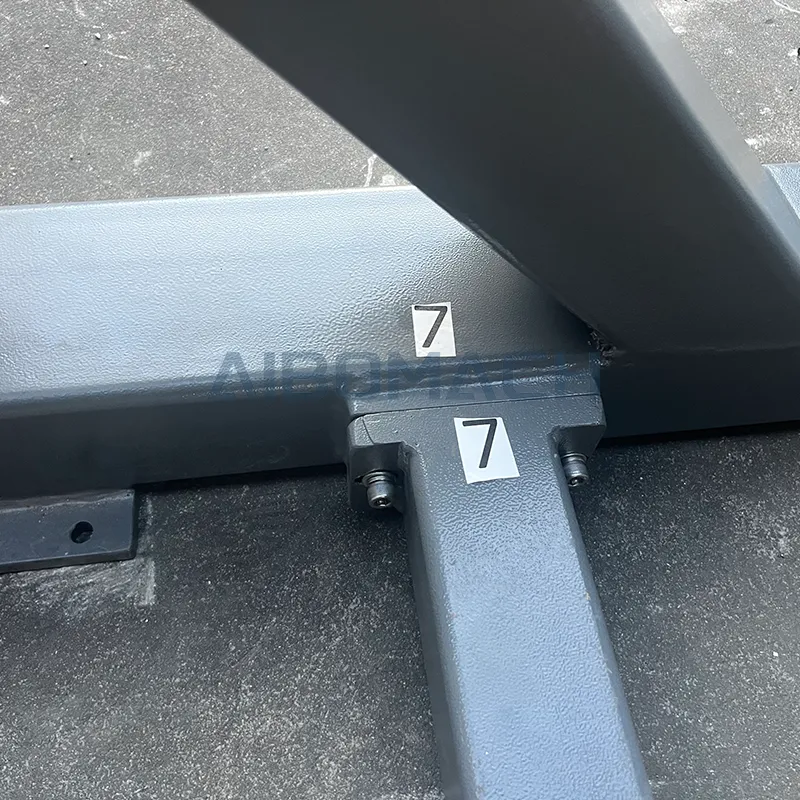

| We will Mark the number on each part, you can find it easily. |
 |

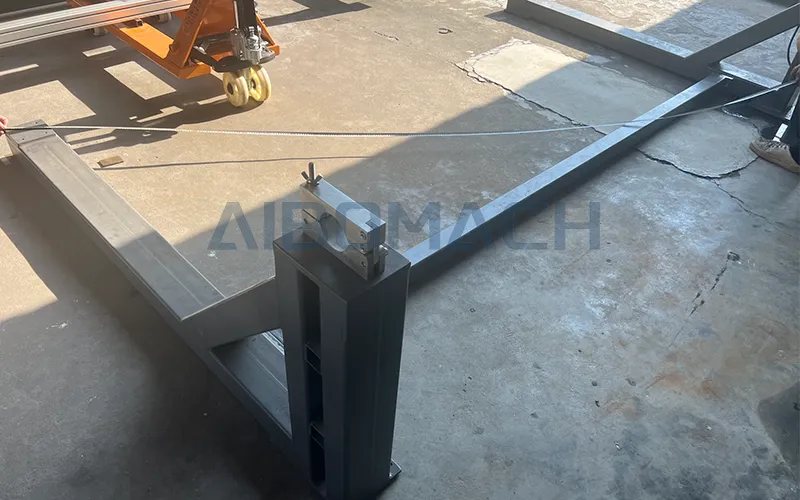

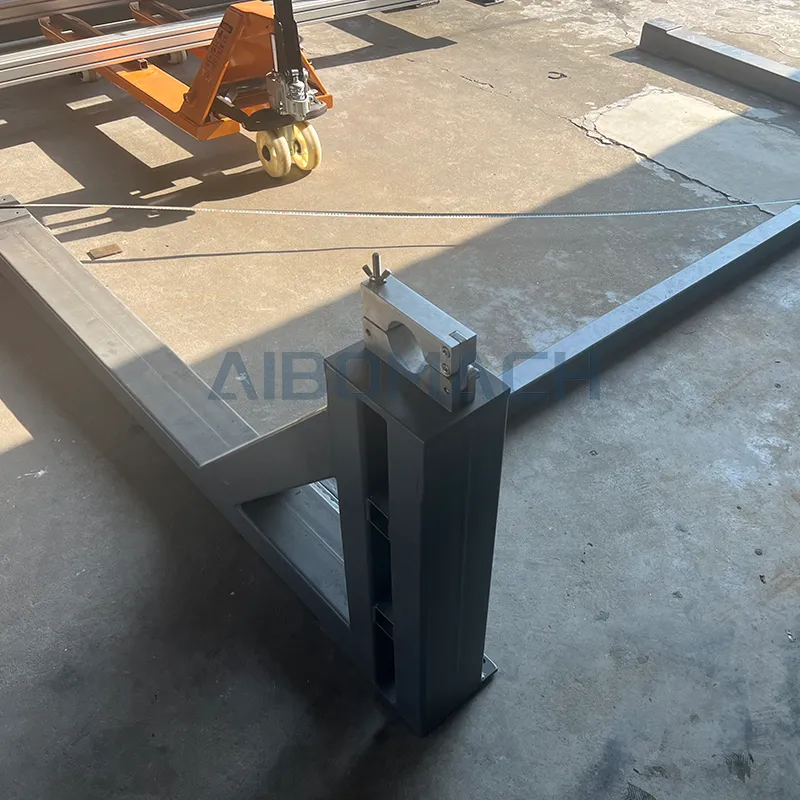

| Install using the diagonal principle to achieve a horizontal position, this will prevent the belt from deviating. |
  |
Machine Operation

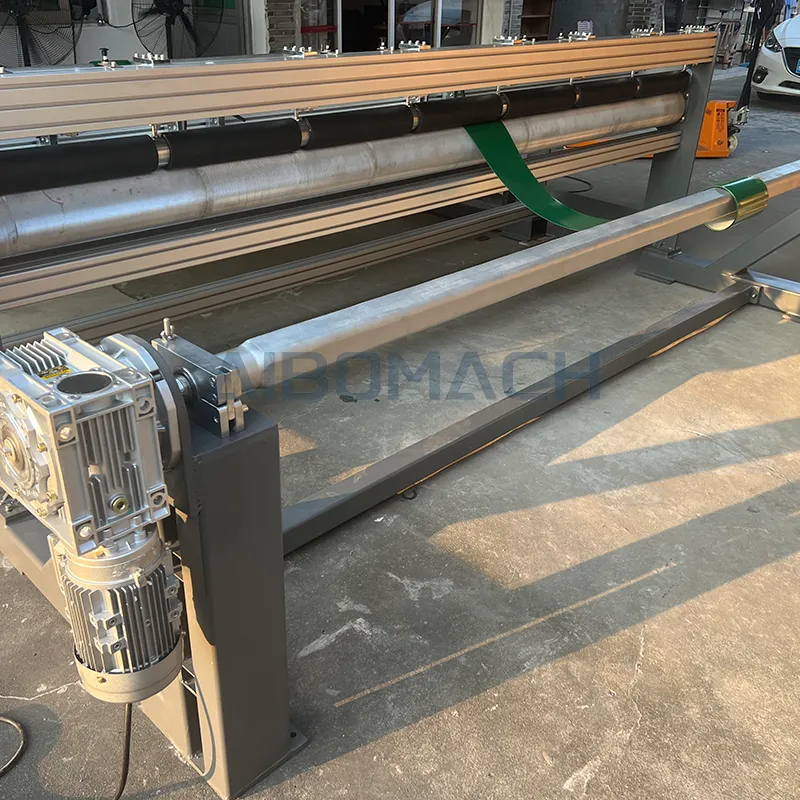

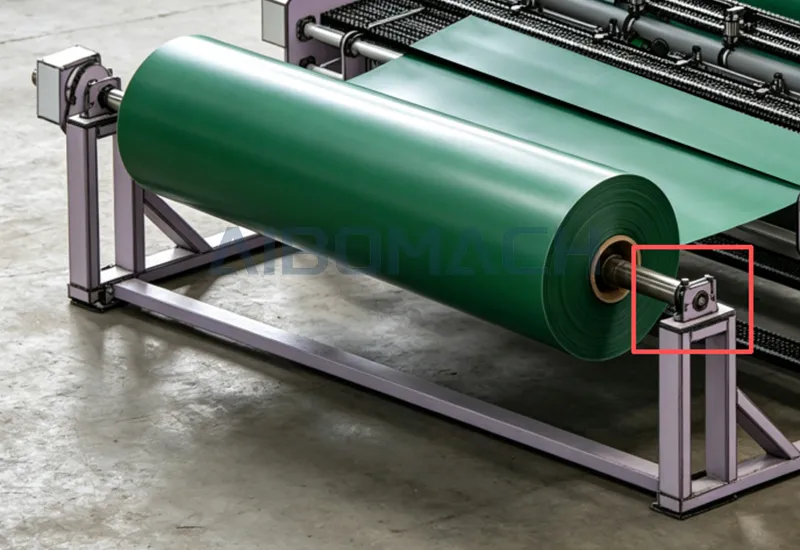

| Loading: Secure the large roll of industrial conveyor belt onto the belt roller of the unwinding frame and lock it. |
 |
 |
For the winder and rewinder ,it has options ,

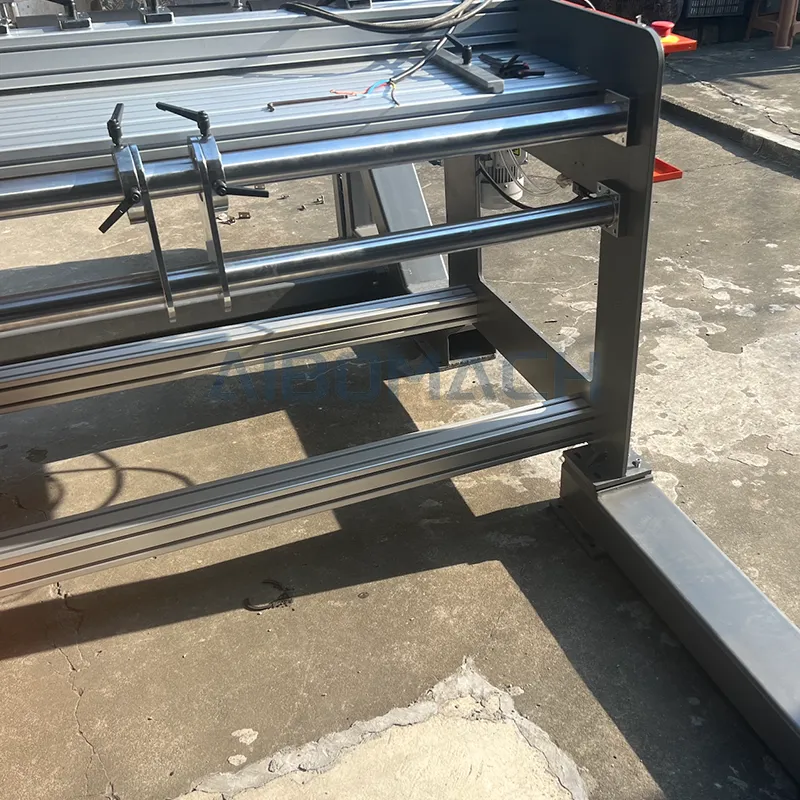

A)Belt Roller 1.we usually use 75*75mm square tube, |
 |

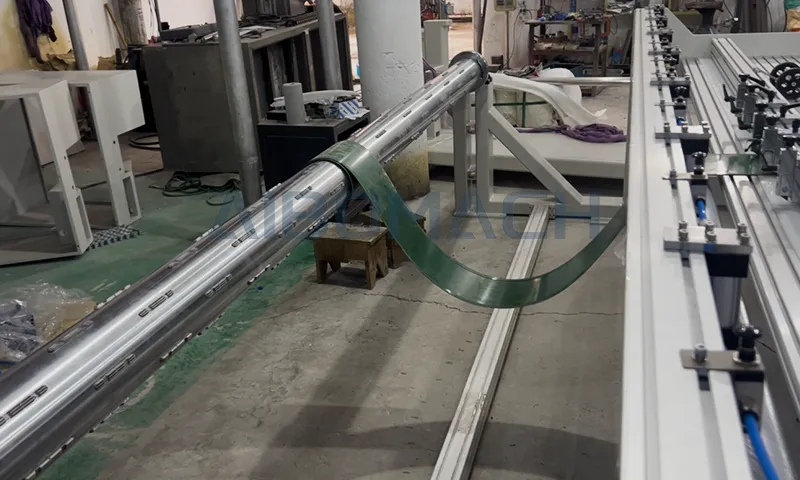

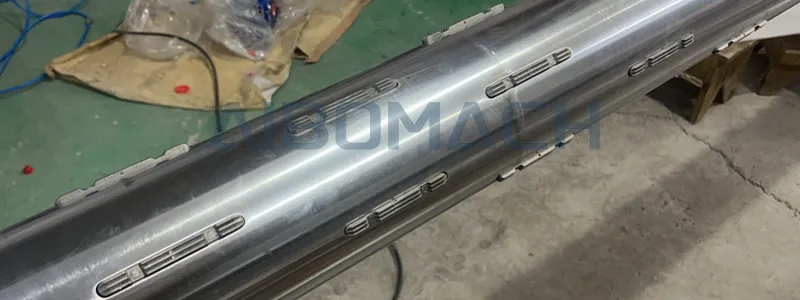

| 2.air shaft according to your size |
 |

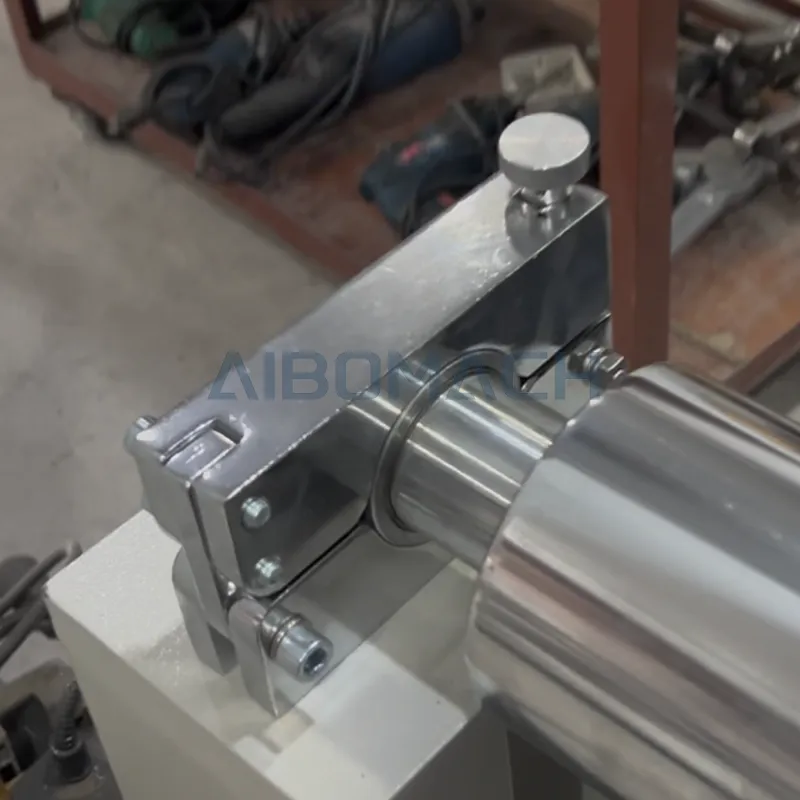

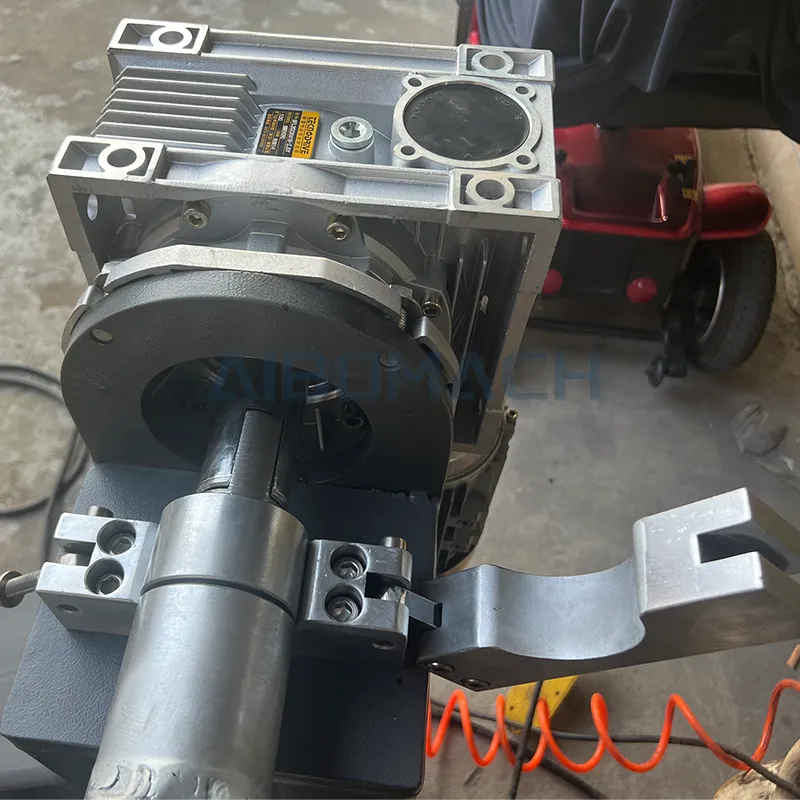

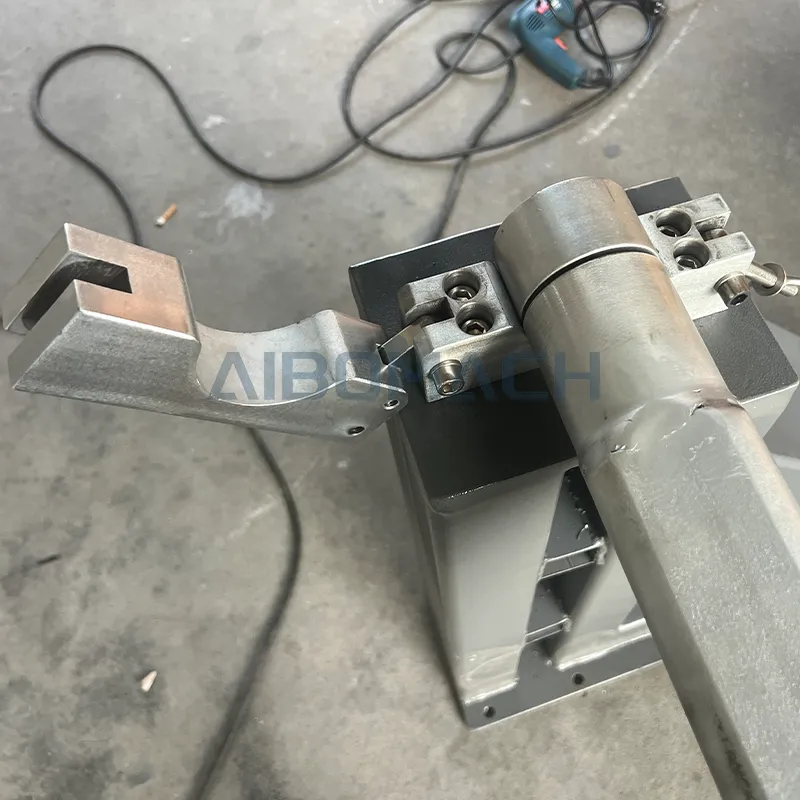

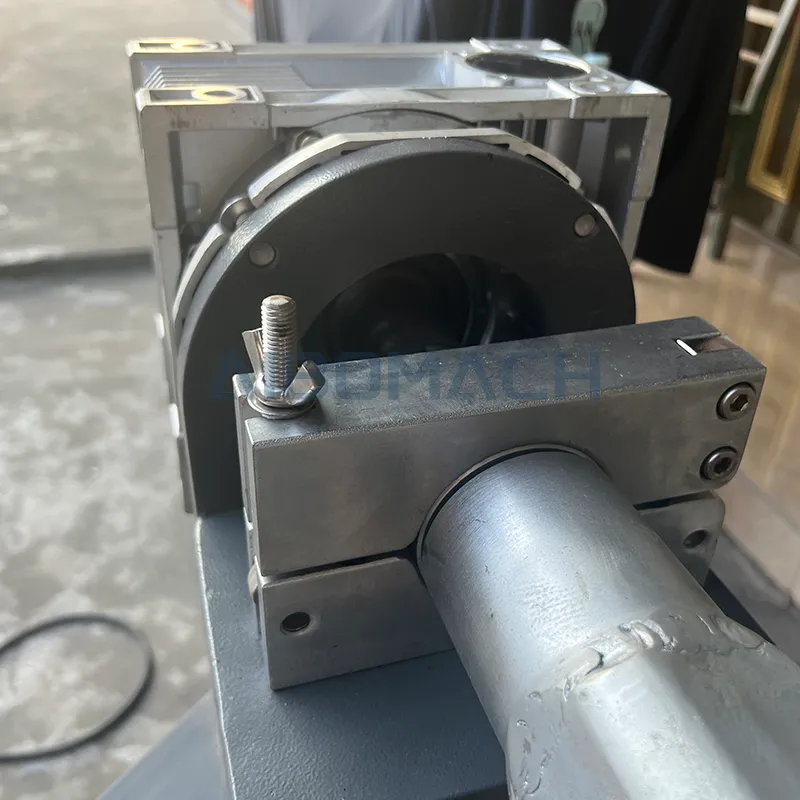

B)Roller Lock 1.Standard lock |
 |
| 2.safety lock |
 |
| Threading : Pull out the leading edge of the conveyor belt roll, pass it through the front guide rollers, and lay it flat into the main slitting unit. |
  |

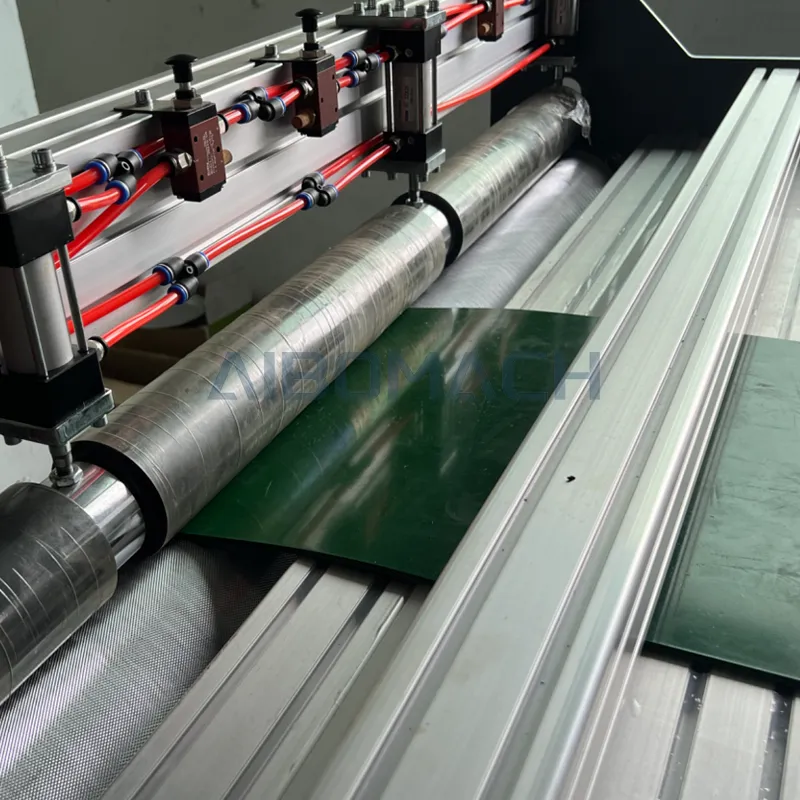

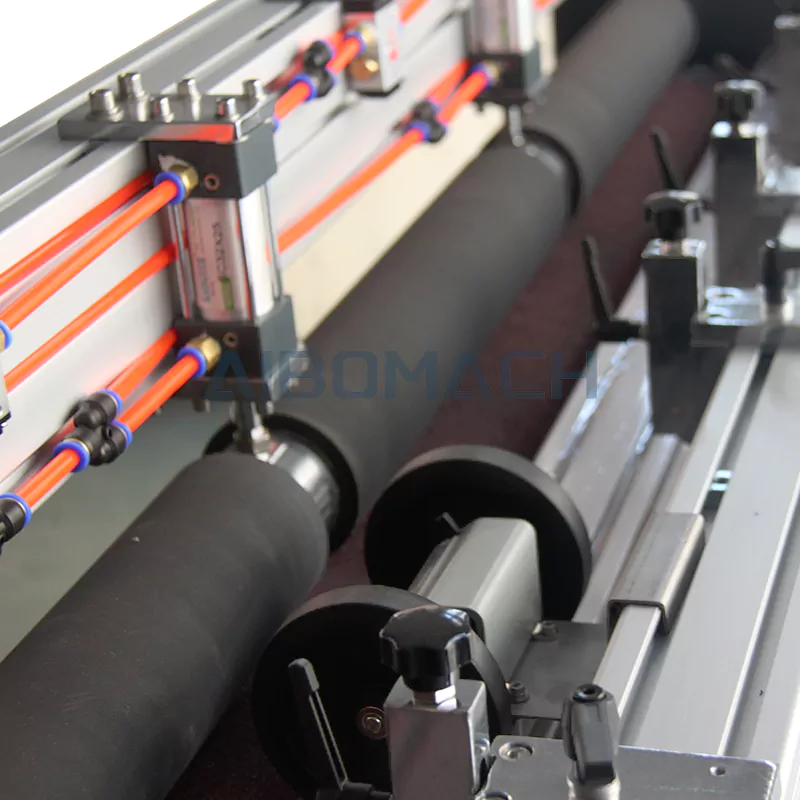

| Roller Engagement: activate the hydraulic lifting mechanism to make the upper and lower traction rollers tightly compress the conveyor belt ( this is the key to generating friction). |
 |

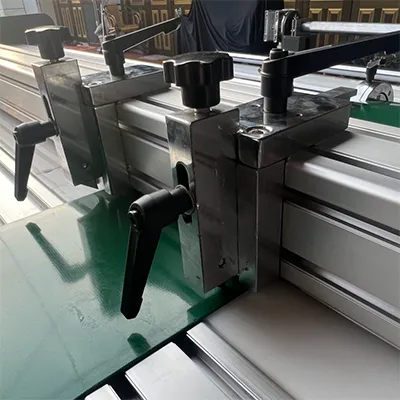

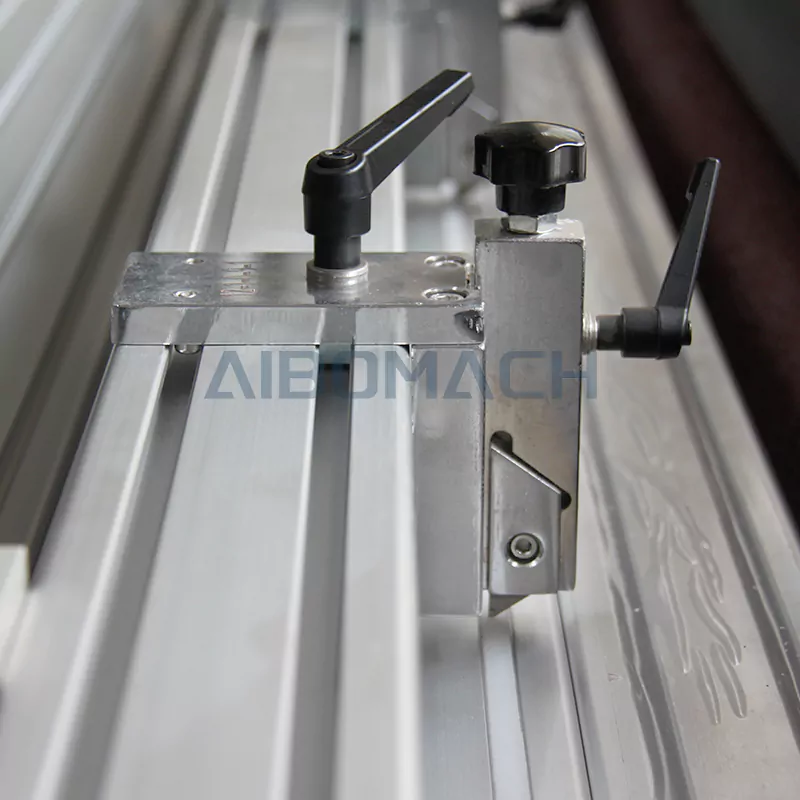

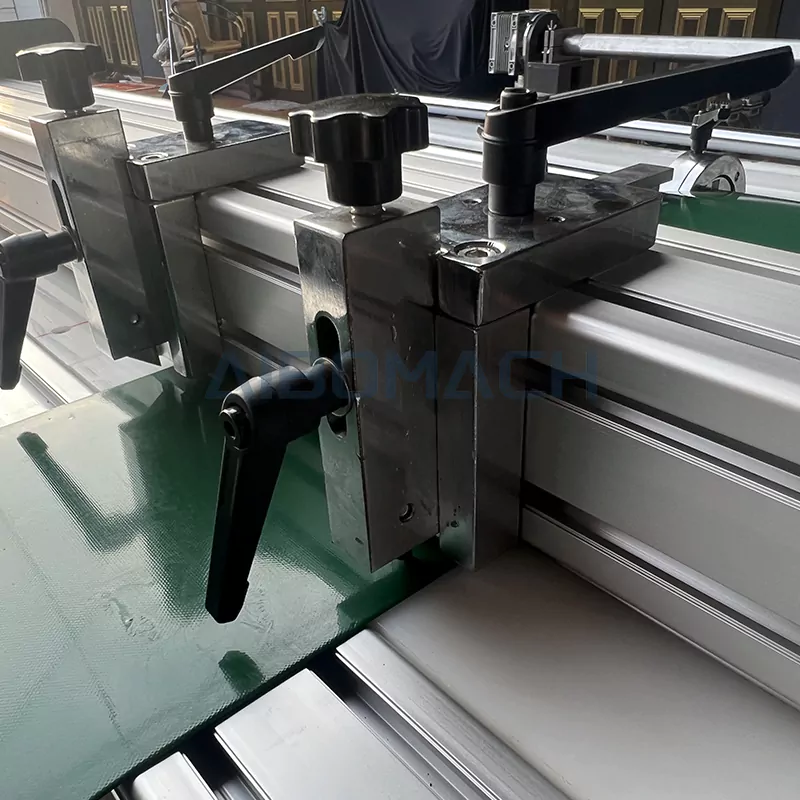

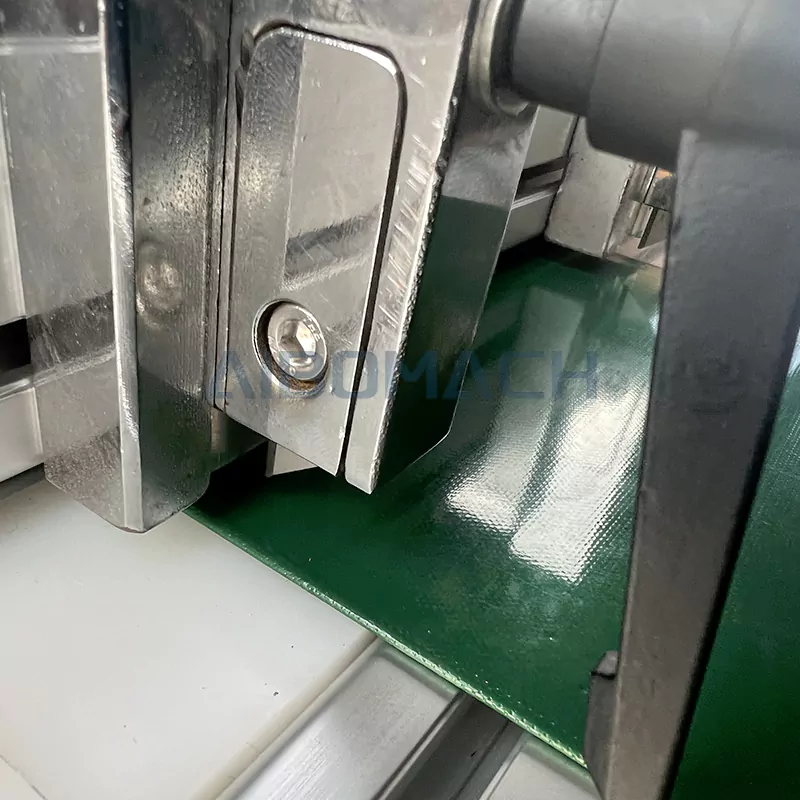

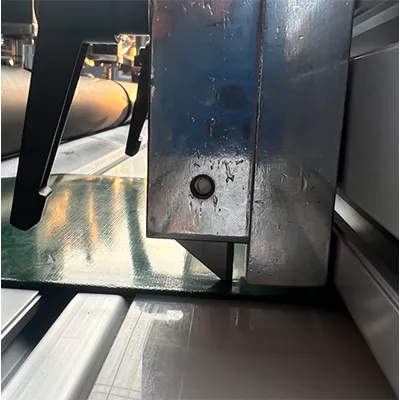

| Knife Adjustment : according to the desired slitting width manually , adjust the position of the longitudinal cutting knives to ensure the cutting depth just severs the belt. |
  |
| web connection : Guide the multiple slit narrow strips to the rear rewinding shafts. |
 |

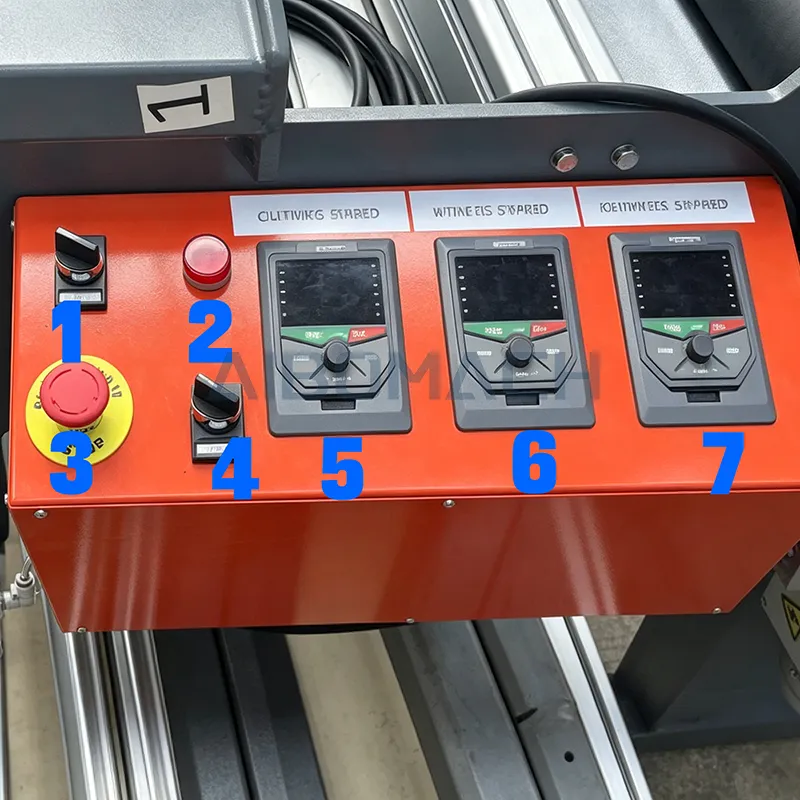

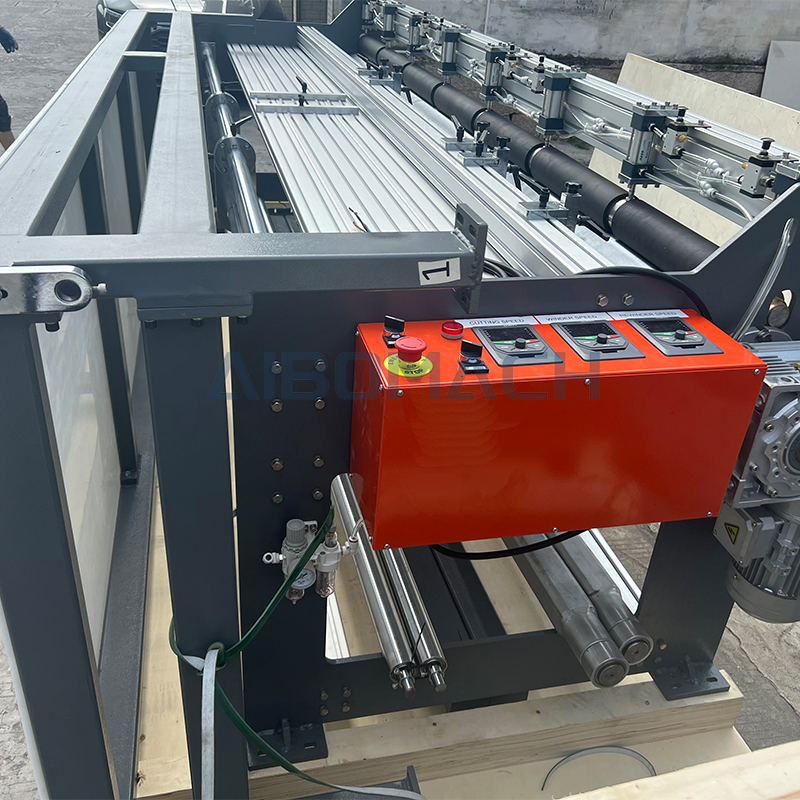

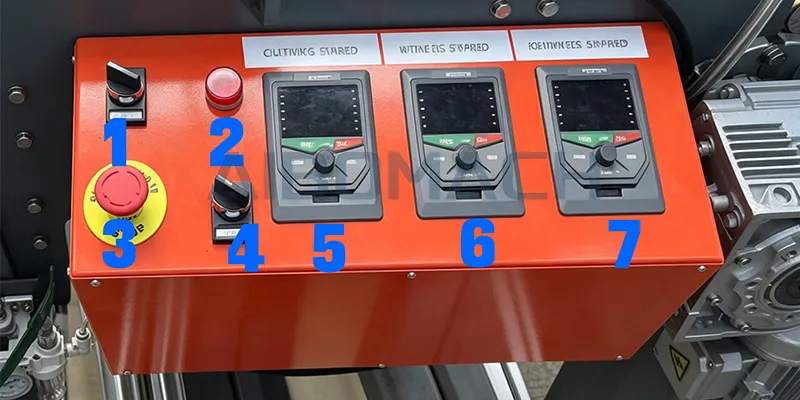

Control Box |
