CC Belt Roll Cutting Machine

CC Belt Roll Cutting Machine

Engineered for high‑precision slitting of large‑format conveyor belt rolls in widths of 1000 mm, 2000 mm, and 3000 mm, the Model CC efficiently converts wide belts into custom‑width rolls according to production requirements.Designed for continuous industrial operation, this heavy‑duty unit features integrated heavy‑duty casters for on‑site mobility, supplemented by positive floor‑locking screws that ensure vibration‑free stability during cutting. The machine incorporates a coordinated winding a

Email: sales@aibobelting.com Whatsapp: +86 17757793680
Get a Price Quote
Details

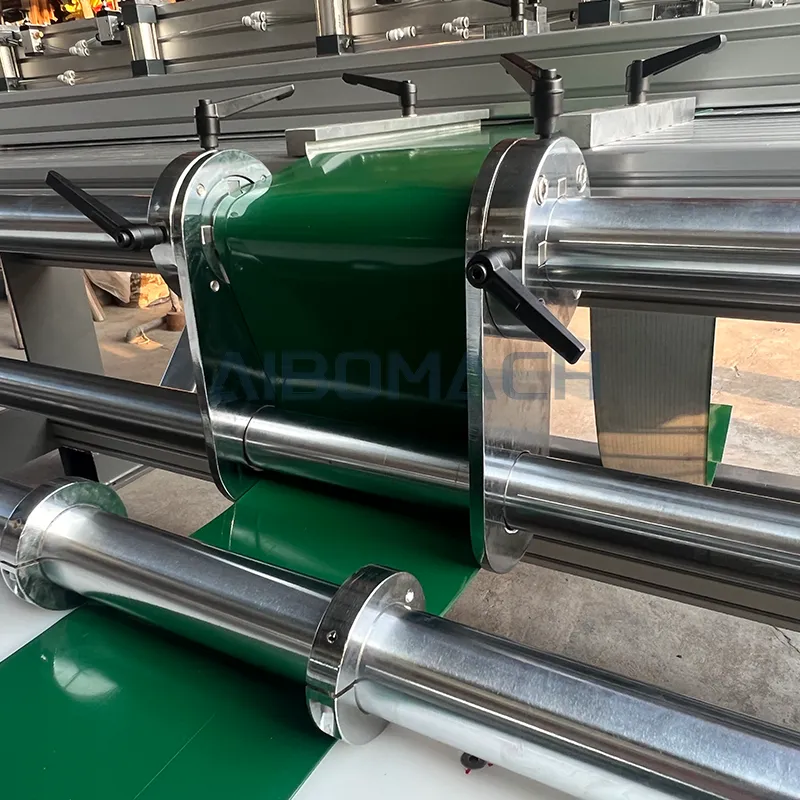

Machine Details Images

Align BlockAlign Block
Clamp Rubber RollClamp Rubber Roll
Meter ReaderMeter Reader
Cutting BladeCutting Blade
Align SystemAlign System
Cutting BladeCutting Blade
Cutting BladeCutting Blade
Cutting BladeCutting Blade

Machine Accessories Images

Appreciation of Timing Belts

ModelCC2000CC3000CC3200
Working Table Width380mm
Max.Cutting Speed47 Rotation/Min
Max.Belt Width2000mm3000mm3200mm
Max.Belt Thickness10mm
Min.Belt Thickness0.5mm
Min.Cutting Width25mm
Machine Dimension2480*1070*1020mm3700*1070*1250mm3690*1110*1380mm
Equipped Blade5pcs
Power750W
Voltage1PH 220V
N.W.420KG600KG690KG
Packing Size2670*1150*1420mm3890*1150*1540mm3870*1200*1640mm
G.W.470KG670KG780KG
