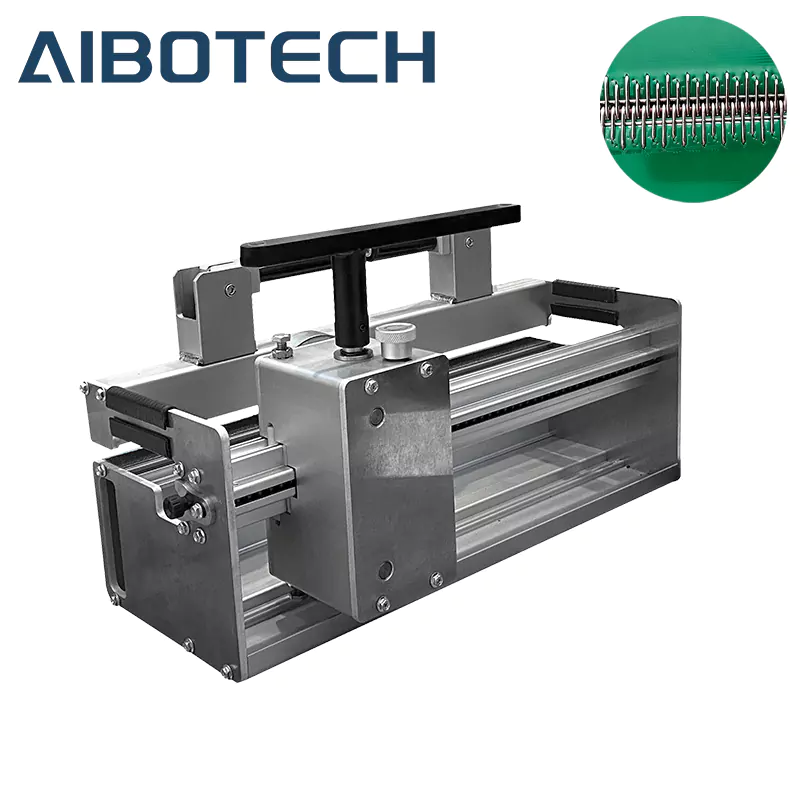

Clipper / Fastners Joint Machine / Conveyor Belt Lacing Machine / Roller Lacer

The vulcanization of conveyor belts – whether hot or cold—is a time-consuming process that requires special skills, expensive equipment, extreme accuracy in the cutting and stripping of belt ends, and a thorough knowledge of solvents, bonding materials, and compatible cover and fill materials.

Mechanical Belt Fastening involves the use of mechanical belt fasteners (also called conveyor belt lacing). Mechanical belt fasteners combine strength and durability with affordability and easy installation

★Featues

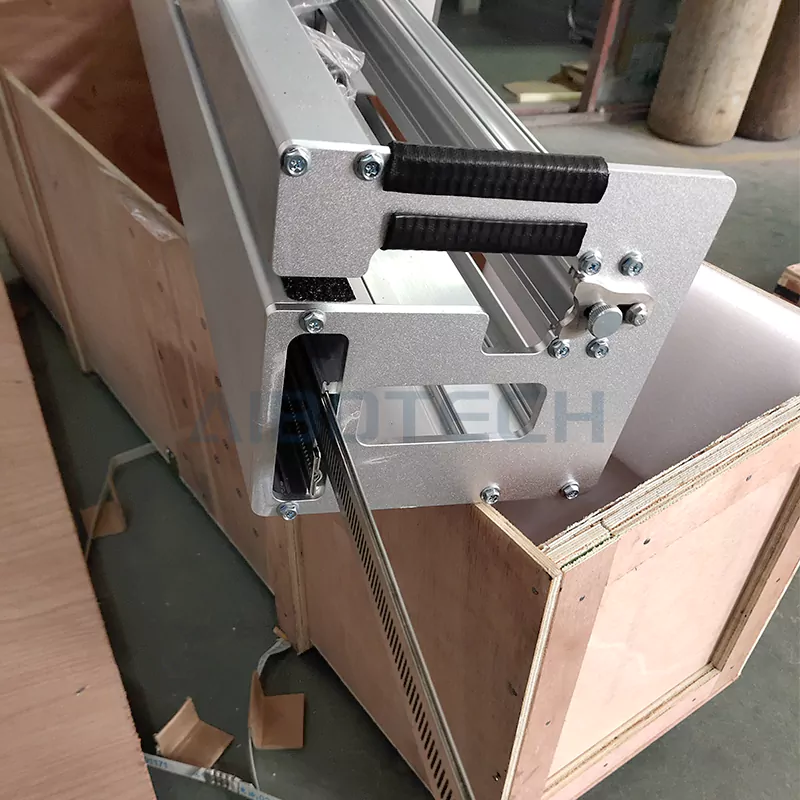

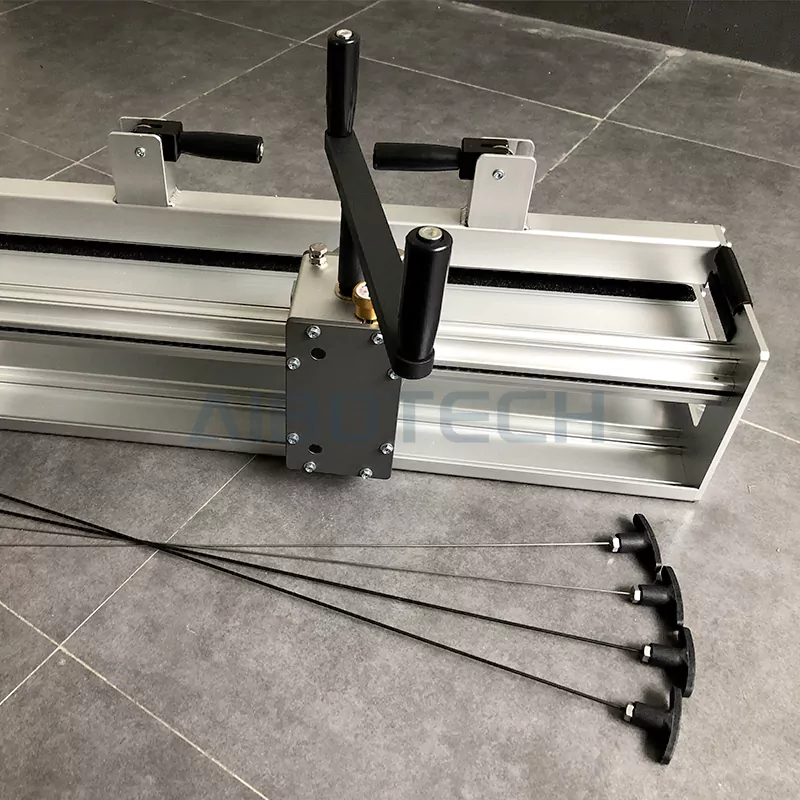

Fastner Joint Tools Easy to do the repair-work,change it easily

1. Rotate the handle to operate ，no need wait heating and cooling.

2. Light weight and suitable for any position.

3. only needs a simple operation to connect the wide belt, and it can get the same effect as our other products, and it is economical and practical.

4. Teeth embed lengthwise in the belt, providing a strong, vice-like hold.

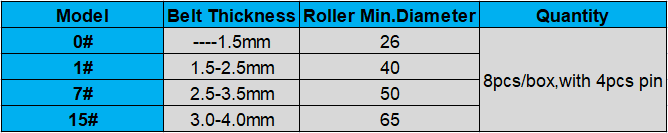

★Technical Datasheet

★Maintenance

It's a relatively sophisticated mechanical equipment, and strengthening maintenance and maintenance has a decisive impact on its service life.

1. When moving, please handle it with care to avoid deformation of the rack.

2. Before the machine is used, the half-circle groove on the guide rail and the working surface of the pressure roller should be kept clean to ensure that the binding is lighter and smoother.

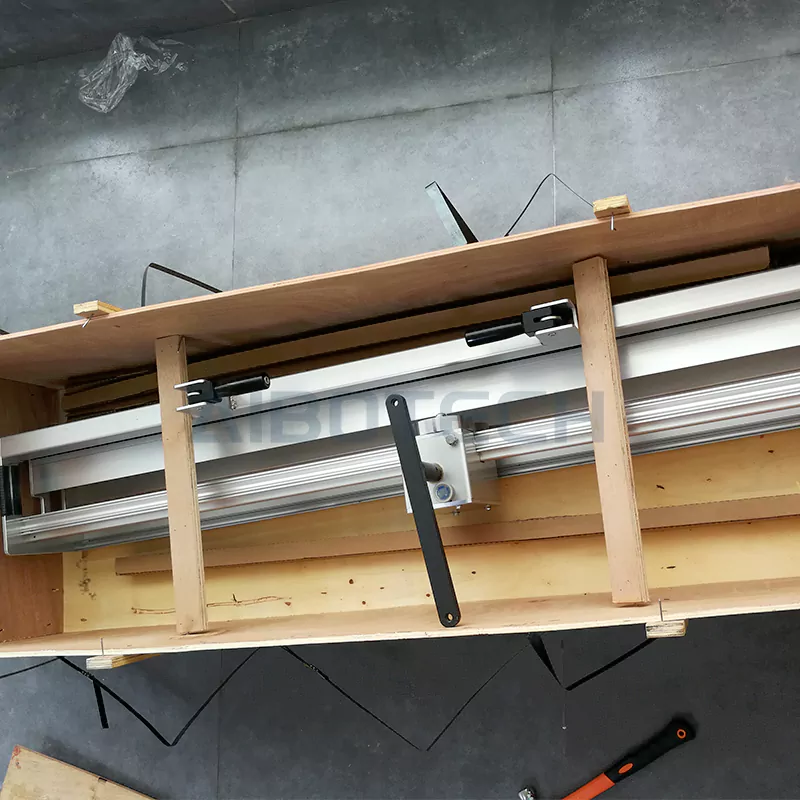

3. After each work, the body should be wiped clean, put back in the packing box, and stored in a dry place.

4. Heavy objects are not allowed to pile up on the guide rail to prevent the parts from being deformed and affecting the use.

________________________________________________________________________________________________

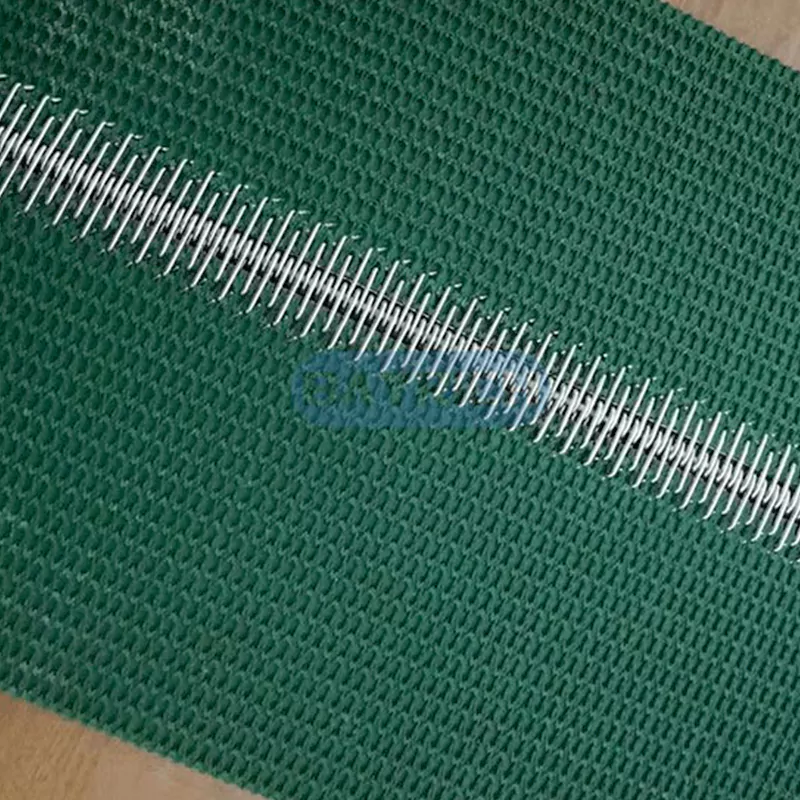

In light-duty applications like agriculture, parcel handling, food, and laundry, fasteners are available in hook and lacing styles, are installed into both ends of the belt, and are joined together with a hinge pin. Installation methods vary from machine application to using hand tools, and the fasteners are available in a variety of metals, plastics, and in some cases, food-grade materials.

Choosing the proper mechanical belt fastening system is one of the most important steps in splicing a belt.

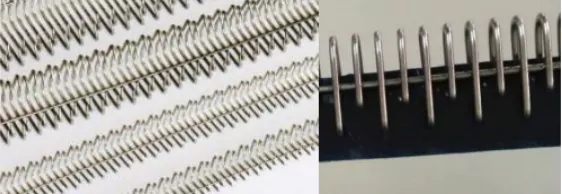

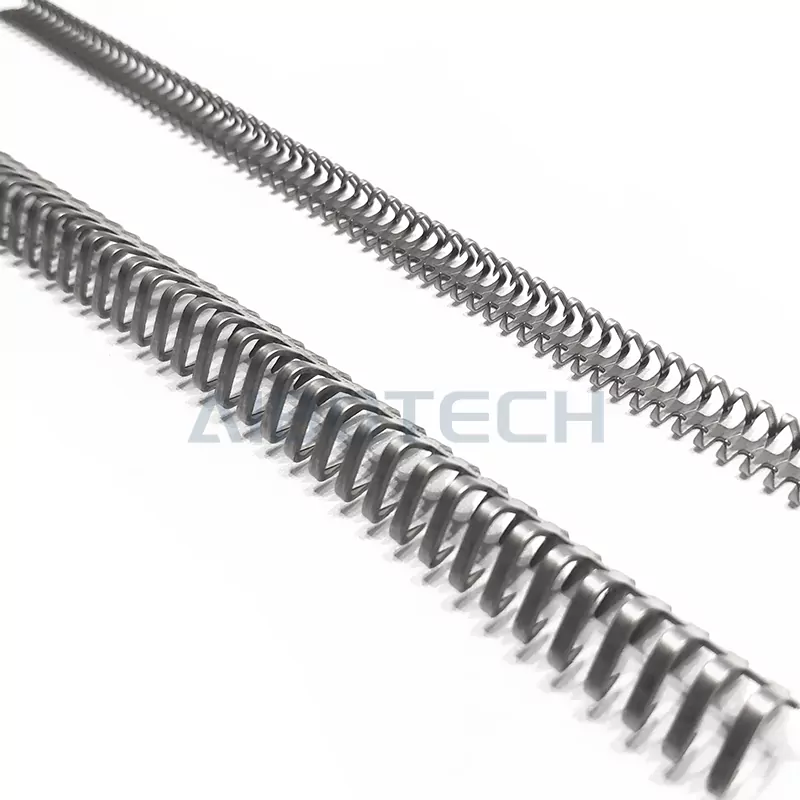

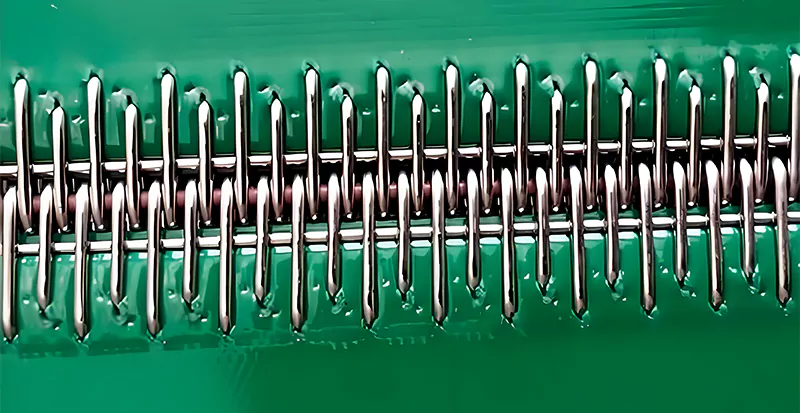

★Wire Fastner Datasheet

★Spike Buckle Datasheet

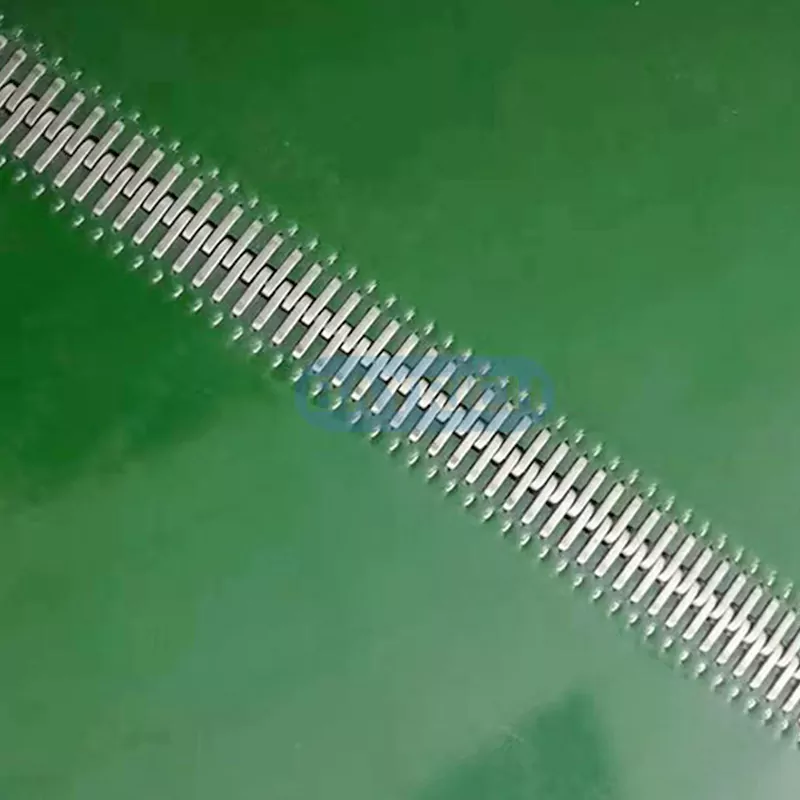

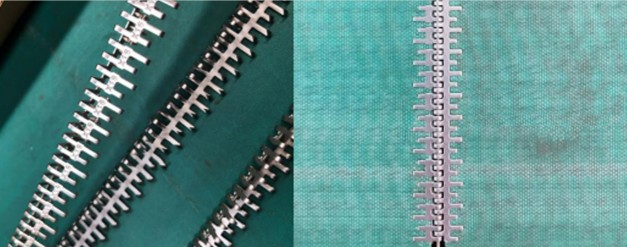

Conveyor belt wolf tooth (LY) buckle, products are widely used: textile printing and dyeing dryer drying room mesh belt, KD, TMT series can steamer, pre-shrinker and other mesh belts, Teflon belt for vertical heat sealing machine, sealing and cutting for packaging industry Teflon belt for machine and high-speed sealing machine Conveyor belt for garment industry lining press ironing machine, special conveyor belt for food processing (such as pure cotton, PVC, PU, Teflon) antistatic conveyor belt, Teflon for thermal lamination machine Adhesive tapes (Teflon) and silicone-coated seamless belts Refilling machine belts for wood processing industry, doffer conveyor belts and other special belts for textile industry Screen printing Anti-ultraviolet drying mesh belts Detergent (chemical) processing industry conveyor belts Tobacco processing lines conveyor.

The wolf tooth buckle is a new generation of patented products developed by technicians on the basis of the introduction of German production technology and combined with the use of conveyor belt buckles in my country. The product has reasonable design and beautiful appearance, and is suitable for high-strength conveyor belts. The advantage is that the connection strength is high, the tensile strength is high, and high-quality imported steel with different thicknesses is used. Not only is it suitable for new belts, but also the old belts that have been stretched and thinned can be used repeatedly, reducing costs and improving efficiency.

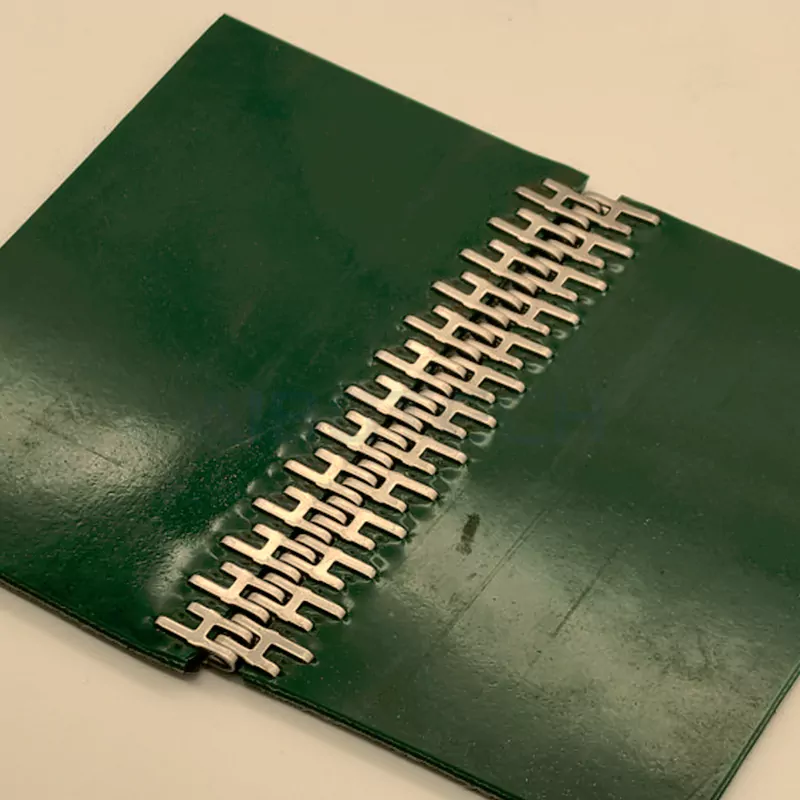

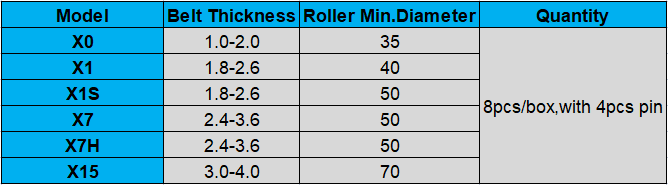

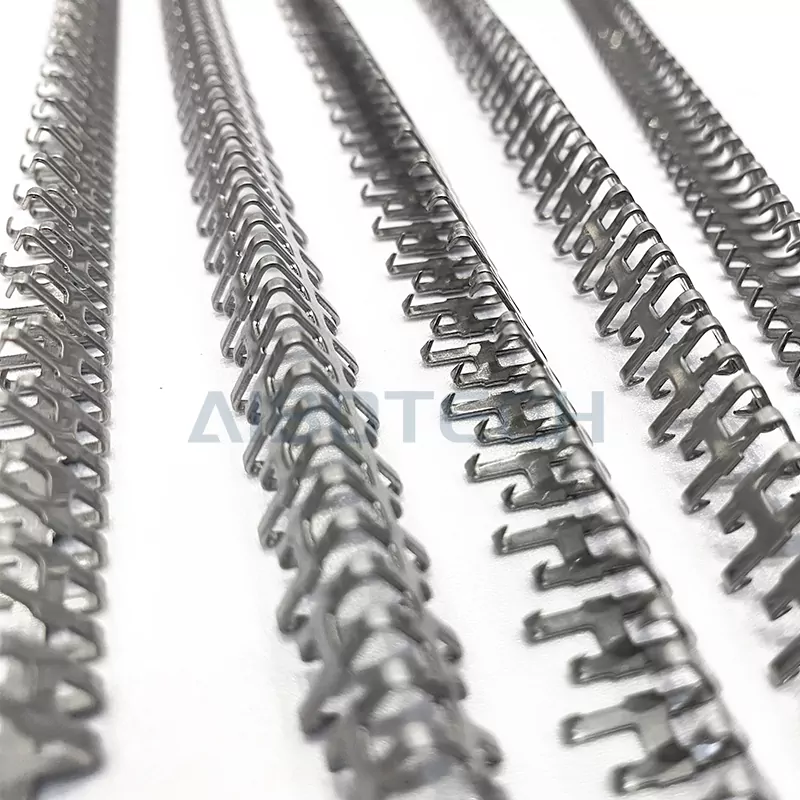

★X Buckle Datasheet

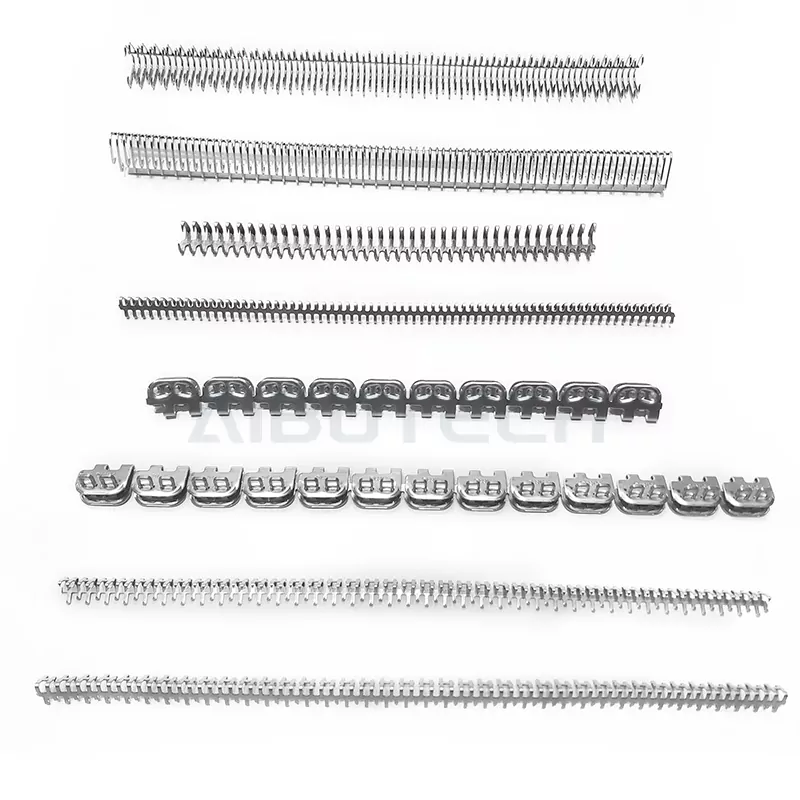

If you need any other buckles,let us know ,we have all type fastners/ buckles.
